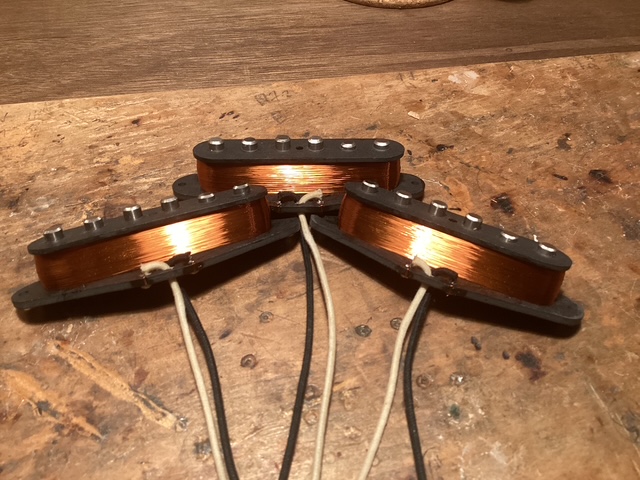

Vintage Tone Pickup

Heavy Formvar ‘63’ S-type pickups. Wound to vintage spec using period correct awg42 heavy formvar insulated wire. Bridge 6.1k, Middle 5.9K, Neck 5,8K (+/- 10%). All S-Type pickups available classic polarity or RW/RP

Options within this product range:

• pre-1956 magnet stagger (pictured), post ’56 stagger, or with flat poles.
• left hand stagger for lefty guitars.
• A ‘59/’62 version using clear enamel wire.

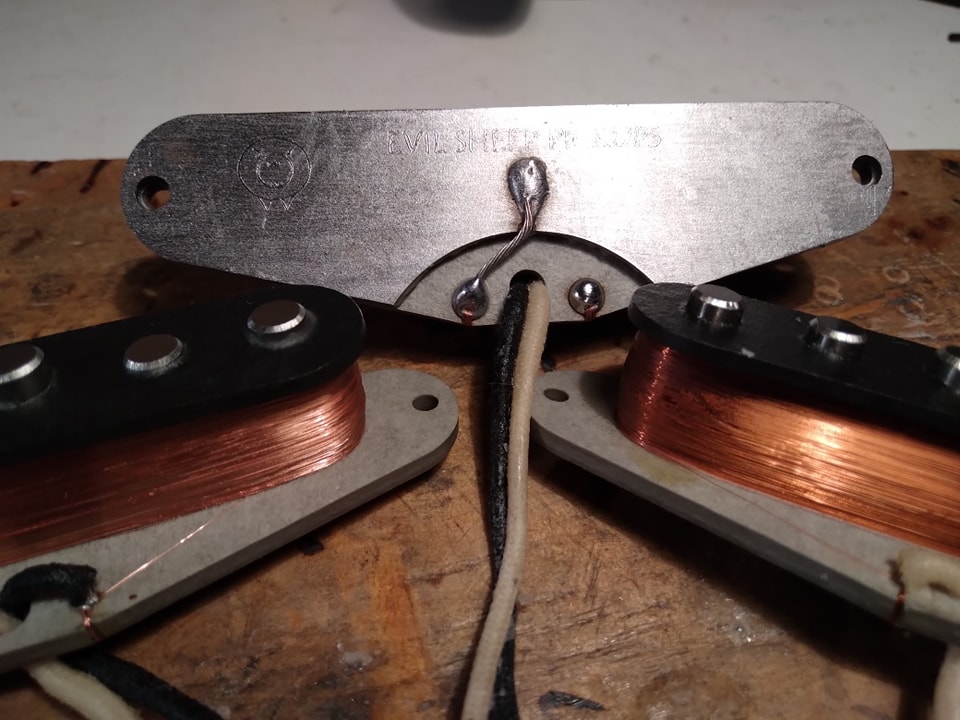

• metal baseplates for S-Type bridge pickups which boost low-end bridge pickup tone. These are available separately with either a short hookup to wire it to the pickup ground terminal, or a long wire hookup to connect it to the ground on the guitar volume control.
• Light relic finish available at small additional cost

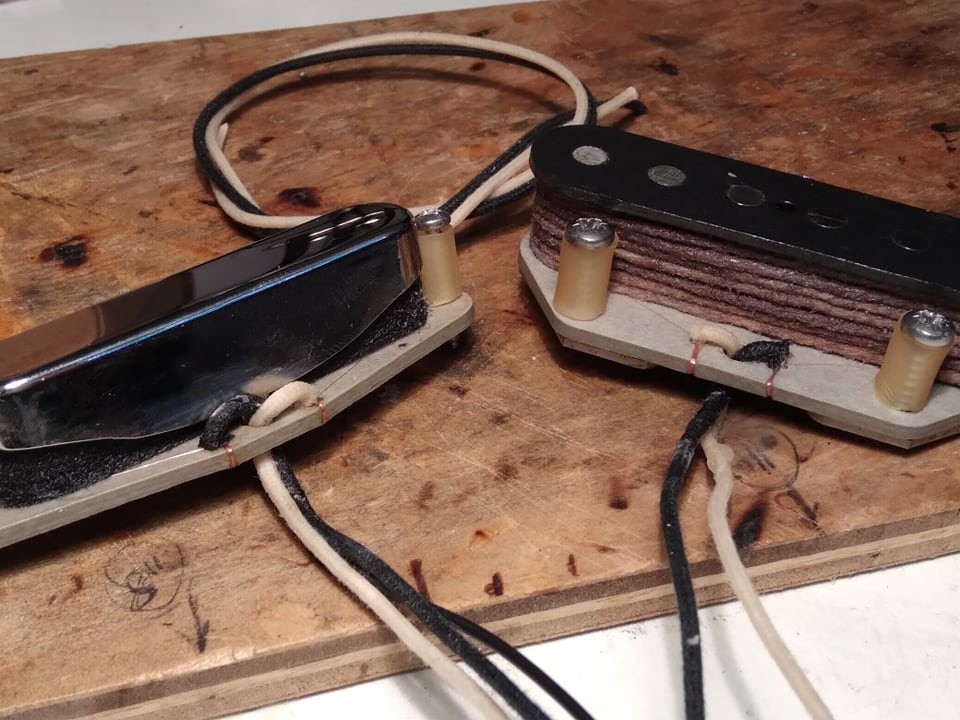

Honky Tonk Sheep

T-Type set. Bridge (11.5k) aims for the classic 50’s T-Type Tone whilst the neck tone is more S-Type with awg42 wire wound to about 5.6K.

Can also be ordered with a classic T-Type awg43 neck spec. Standard sets come with a nickel neck pickup cover. Alternative colour/type of neck pickup colours are available sometimes at small additional cost depending on spec.

Light relic finish also available at small additional cost.

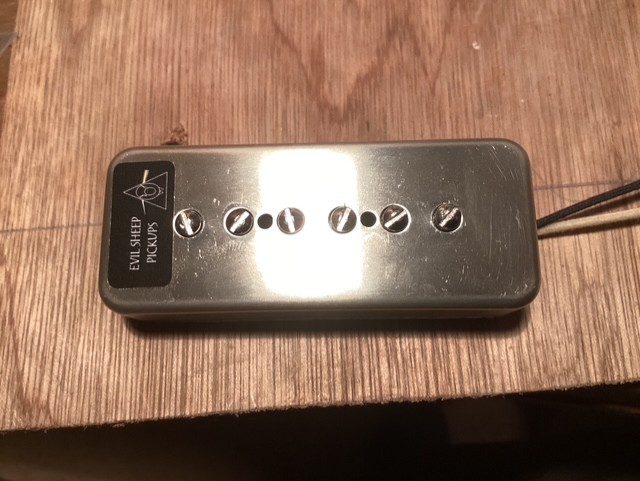

Evil Sheep P90’s

My standard offering is a ’58 spec (approx. 7.9k for bridge pickup and 7.1K for neck pickup) with rough cast alnico 5 magnets, but can be ordered with any spec and mixed magnet configurations choosing from alnico 2, 3, 4, and 5.

I don’t keep these components in stock and prices may vary depending on my supplier and the pickup cover required.
